heroal D 72 - Commercial door system

Commercial door system for high-traffic entrance areas

The heroal D 72 commercial door system offers functional versatility with a range of opening and infill panel types. At the same time, the performance features of the door system can be tailored to the construction project and requirements relating to heat insulation, wind load, air permeability, tightness against driving rain and burglary resistance can be fulfilled for the specific application. The tested and certified heroal system can be used for all popular opening types, including emergency exits and escape routes (as per DIN EN 179/1125), automatic door systems, finger guard doors, and burglar-resistant doors (also available with an emergency exit door function) in line with RC 2 and RC 3.

  • Certified emergency exits and escape routes as per DIN EN 179 / DIN EN 1125
  • Comprehensive selection of opening types (automatic, finger guard, push-pull, half-swing and French doors)
  • Harmonious curtain wall integration

    Product Details

  • Processing advantages & product details

    Fabrication

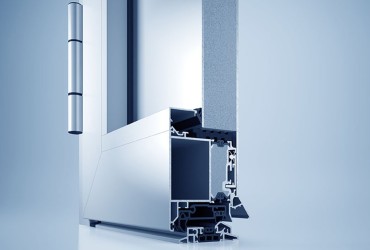

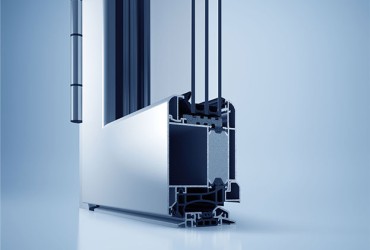

    heroal commercial door systems set themselves apart through their exceptional flexibility in fabrication, reliable and error-tolerant production as well as reduced production costs and short production times. The heroal connection technology with nail-in and press-fit corner angles as well as connector screws and the uniform construction principle across all systems and design depths ensure error-tolerant production with reliable processes. Opening corner angles enable particularly easy alignment of two mitred profiles. The universal fitting groove lets you use fittings from different manufacturers. heroal D 72 combines a wide range of fabrication options in a single system thanks to the flexible profiles with different view widths and the heroal D 72 RL and heroal D 72 CL design lines. The end-to-end system logic and use of the same tools offer maximum production reliability. At the same time, the system allows individual customer requests to be met, while also saving on storage costs thanks to the use of universal components. The huge selection of around 160 different door seals means that there is a door seal for every requirement to easily adjust the performance features to the construction project. The certified heroal D 72 system for emergency exits and escape routes can be used to fabricate 1- and 2-casement full and partial panic doors or emergency exit doors in line with DIN 179/1125. The universal punch can be used to machine the profiles of all door systems from the heroal D 72 system. Production times are significantly shortened and setup costs reduced.

    Approval capability

    The heroal D 72 door system provides certified solutions for emergency exits and escape routes, with hard-wearing fittings, large production sizes and CE marking in line with EN 14351-1. Emergency exit and panic doors require the coordinated interplay between the frame, casement, fittings and installation situation. heroal uses perfectly fitting profiles, optimised gap sizes (5/11 mm) and certified fittings to permanently eliminate jamming.

    Sustainability

    heroal door systems are made from recycled aluminium, making them extremely durable while also contributing to a building's energy-efficiency. The modular system design and different insulation options enable the heat insulation values to be easily and flexibly adjusted to the relevant construction project. With Uf values of 1.7 W/m2K, the heroal D 72 door system profiles offer fantastic flexibility when it comes to technical requirements. In combination with appropriate glass and infill panels, Ud values of up to 0.89 W/m2K can be achieved. Besides their energy-efficiency, heroal door systems also impress with their comprehensive sustainability throughout the entire product lifecycle. The use of environmentally-friendly, healthy and reusable materials is confirmed by the Cradle to Cradle Certified® certification. Beyond this, environmental product declarations (EPDs) as well as the optional use of heroal Low Carbon Aluminium support the fulfilment of recognised sustainability standards such as DGNB, LEED and BREEAM.

    Comfort

    The heroal D 72 commercial door allows the entrance element to be passed unimpeded with the help of the zero threshold solution in line with DIN 18040 - 1 and DIN 18040 - 2. To prevent moisture damage in the interior, the heroal D 72 door system can be combined with the heroal DS drainage system, which diverts any surface water without any backlog. The standard version of the heroal D 72 door system is burglar-resistant and tested up to resistance class RC 3. Self- and multi-locking fitting variants increase security. Soundproofing up to class 3 contributes to a healthy living environment. Smart access solutions such as Keyless Entry increase comfort. At the same time, heroal door systems can be fitted with electric locks and integrated in all common Smart-Home systems.

    Design

    The heroal D 72 door system offers a wide range of design options and maximum design freedom. The highly weather-resistant heroal hwr powder coating creates a perfect harmony of colours with the heroal window, sliding door, roller shutter, curtain wall, sun and roof systems – available in over 500 RAL, DB, VEKA shades with different gloss levels and textures. Metallic-reflective looks can be created with an eloxal coating. The offer is complemented by the heroal SD surface finish with wood, rust or concrete look as well as the exclusive Les Couleurs® Le Corbusier® colours. The heroal Les Couleurs® Le Corbusier® front door in exclusive colours by Les Couleurs® Le Corbusier® gives every entrance area a natural and architectural look. All opening types and a wide variety of styles, including skylights and side sections, are possible. Special shapes such as round and basket arches are made possible by the heroal profile bending and edging service. The door systems can be combined with infill panels, sash-concealing attachment panels (one-sided or both sides), glass inserts and panels with motifs in real wood or ceramic infill panels from different manufacturers. The modern heroal front door infill panel has an integrated handle strip in three lengths with optional LED lighting. Thanks to the patented, reversible infill panel attachment, the design can also be changed retrospectively. The heroal design lever handle and door hinges (roller, top or concealed hinges) from the heroal DF fitting series, available in a range of colours, complete the high-quality design concept.

    System compatibility

    heroal door systems can be perfectly combined with heroal window, sliding and lifting-sliding, curtain wall and roof systems for easy installation processes and harmonious views. The heroal D 72 commercial door, with its versatile profile design, makes a key contribution to the integration in the heroal C 50 curtain wall system. The modular construction of the heroal C 50 curtain wall offers the perfect solution to the various energy-related and transparent requirements for buildings. Together with the integrated heroal window and door systems, this gives architects and fabricators exceptional design freedom.

  • Brochures & test certificates

  • Dimensions & drawings

    Profile depth [mm]

    Frame profile
    72
    Leaf profile
    65 - 72
    Bar profile
    72

    Visible profile width [mm]

    Frame profile
    60 - 250
    Leaf profile
    56 - 124
    Bar profile
    70 - 254

    System properties

    Glass filling strength [mm]
    68/72
    Max. leaf weight [kg]
    180
    Max. leaf widths [mm]
    1.400
    Max. leaf heights [mm]
    3.000
    Min. face width sash/frame profile
    145

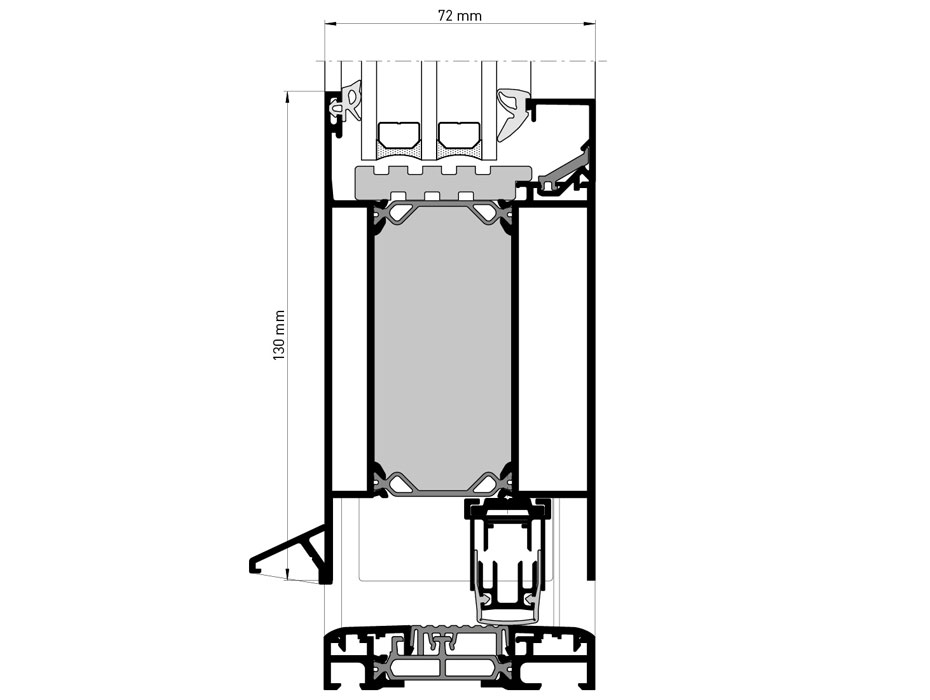

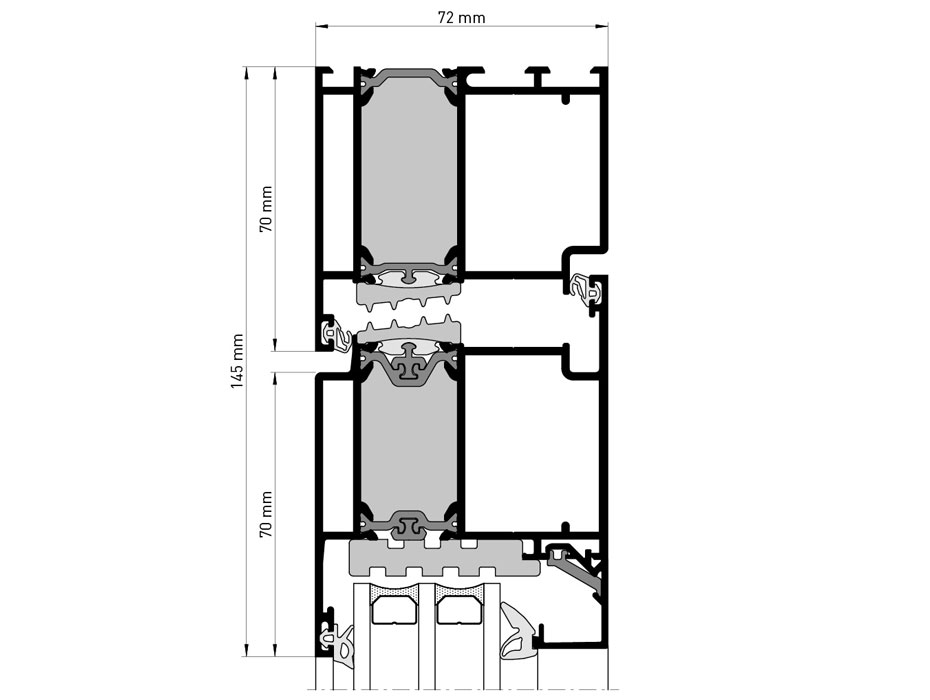

    Sectional Drawings

  • Performance characteristics

    RC 3 Resistance to burglary
    8 Continuous function
    E900 Resistance to driving rain
    4 Impact resistance
    ≥ 1,0 Heat insulation (Uw in W/m2K) / Profile width [mm]
    ≥ 1,7 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    3 Mechanical resistance
    2 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    Rw=43 dB Soundproofing class
    C4 Wind resistance
  • CAD & BIM data

  • Tender texts
