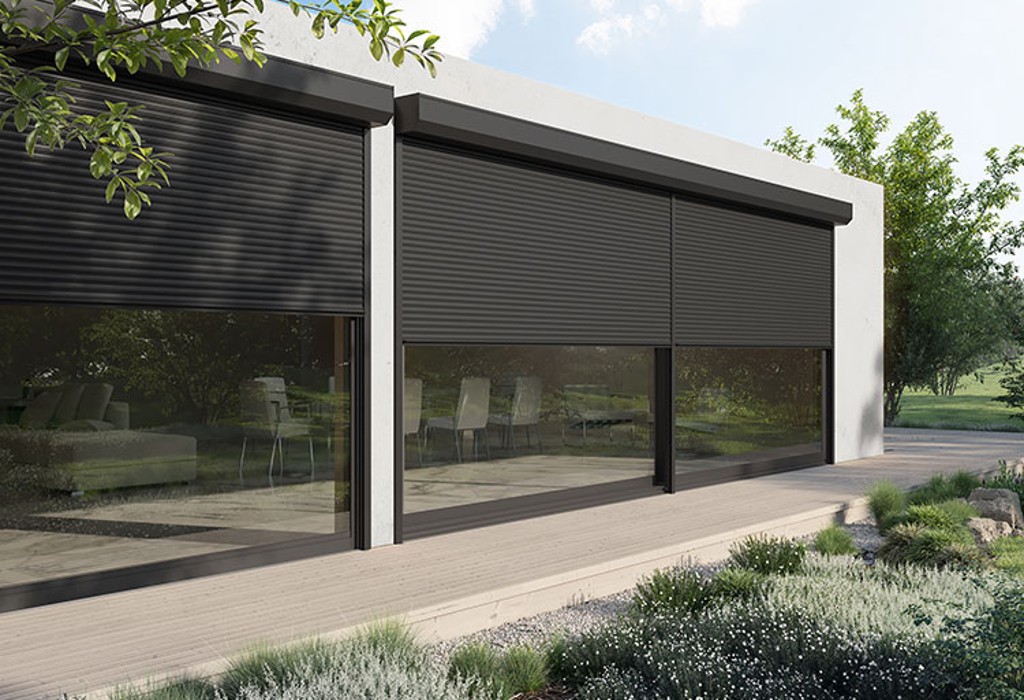

Front-mounted roller shutters - ideal for retrofitting
Whether new build or renovation - heroal front-mounted roller shutters offer comfort, protection and energy-efficiency. They are installed in front of the window and are ideal for retrofitting during modernization or renovation. The high-quality aluminium system provides reliable protection from the sun, weather and prying eyes - and increases security up to resistance class RC 3. Thanks to the many design and equipment options, heroal front-mounted roller shutters adapt perfectly to your curtain wall. For more privacy, living quality and security - day after day.
Advantages of heroal front-mounted roller shutters at a glance
Subsequent installation
Ideal for retrofitting in existing buildings
Almost invisible integration of the front box possible
Harmonious façade design even in existing buildings
Small blending boxes
Compact box sizes even with large window areas
Discreet look for modern architecture
Space-saving and stylish at the same time
Individual design
Aperture boxes in various shapes and sizes
Wide range of colors and designs for every curtain wall
Perfect adaptation to your style and wishes
heroal front-mounted roller shutters at a glance
Versatile in use
heroal RS 37
Increased burglary protection
heroal RS 37 RC 2
Increased burglary protection
heroal RS 37 RC 3
Narrow winding
heroal RS 41 SW
For particularly large element widths
heroal RS 52
Burglar-resistant for large units
heroal RS 55 SL
heroal RS 37
heroal RS 37 RC 2
heroal RS 37 RC 3
heroal RS 41 SW
heroal RS 52
heroal RS 55 SL
Box type
Roll formed Front box
Security Front box
Security Front box
Roll-formed stem box
Roll-formed stem box
GKSE
Box shape
20°, 45°, 90°, half-round, quarter-round
45°
45°
20°, 45°, 90°, half-round, quarter-round
20°, 45°, 90°, half-round, quarter-round
45°
Box sizes [mm] (height x depth)
125 - 205
205
205
137 - 205
150 - 205
205 - 300
burglary resistance
Integrated anti-push-up device
RC 2
RC 3
Integrated anti-push-up device
Integrated anti-push-up device
Integrated anti-push-up device
Max. Size [mm] (width x height)
3.000 x 3.500
2.095 x 2.350
1.920 x 2.140
3.500 x 3.500
4.500 x 3.100
5.000 x 4.000
Insect screen
Yes
No
No
Yes
No
No
Drive type
Motor, belt
Motor
Motor
Motor, belt
Motor
Motor
Smart Home
Yes
Yes
Yes
Yes
Yes
Yes
Integrated insect screen
Summertime is ventilation time - but it often brings flies, mosquitoes and wasps into the house. That doesn't have to be the case: The integrable insect screen roller blind from heroal reliably protects you from insects - exactly when you need it. It disappears quietly into the roller shutt
Summertime is ventilation time - but it often brings flies, mosquitoes and wasps into the house. That doesn't have to be the case: The integrable insect screen roller blind from heroal reliably protects you from insects - exactly when you need it. It disappears quietly into the roller shutter box to save space and is immediately ready for use when needed. In winter, it remains invisibly stowed away without having to be removed. So you can enjoy fresh air at all times - without annoying insects and without effort.
Design your roller shutters conveniently online. Choose dimensions, colors, drive and design. You decide - whether classic or modern, electric or manual. Your home, your solution. Start directly in the configurator!
Whether a striking accent or discreet integration - the heroal front-mounted roller shutter can be perfectly adapted to the architecture of your home. Choose the shape, color and size to suit your taste. Thanks to its compact design and flexible system selection, the roller shutter adapts perfectly to any curtain wall - whether modern, classic or purist.
Whether harmoniously integrated or deliberately rich in contrast - design your front-mounted roller shutter as individually as your home.
Your design options at a glance:
Various box shapes: round, square, semicircular or beveled
Small box sizes for a discreet look for all window sizes
Color tone uniformity for cover box, guide rail and roller shutter slats
Flush-mounted solution (plaster base roller shutter) for almost invisible integration
A roller shutter can do more than just protect you from the sun or prying eyes. With the heroal security options, you can transform your front-mounted roller shutter into effective burglary protection - discreetly integrated and tested up to RC 3. This allows you to protect what is important to you - reliably, automatically and individually tailored to your security needs.
Which security level is right for me?
For classic burglary protection in residential areas, level 2 already offers very good protection and in many cases fulfills all basic security requirements. However, if your house is detached, you have particularly large window areas or want increased protection, we recommend level 3 - ideally in combination with a heroal security window for maximum security.
Security level
Push up inhibition
Certification / resistance class
Special features
1
Up to 750 N
-
-
2
Up to 750 N
Certification according to TR 111 of the Federal Association of Roller Shutters and Sun Protection
-
3
Up to 3000 N
Resistance class RC 3
Integrated anti-lift device
4
Up to 6000 N
Resistance class RC 3
Integrated anti-lift device
Why heroal front-mounted roller shutters are the right choice
As a family-run company with over 150 years of experience, we stand for quality without compromise. Our products are durable, well thought-out and tailored to your needs. Front-mounted roller shutters from heroal are easy to install, impress with their high energy-efficiency and blend in with the appearance of any curtain wall - ideal for new builds and retrofits.
Would you like to integrate front-mounted roller shutters into your new building or retrofit them? heroal front-mounted roller shutters can only be purchased from a heroal specialist partner. Our specialist partners will be happy to advise you on choosing the right front-mounted roller shutter and install it professionally in front of your window. Even after the installation of your heroal front-mounted roller shutters, our heroal specialist partners are available to you as reliable and competent service partners. Find the right specialist partner near you now from over 3,500 heroal installers worldwide.
Would you like to open and close your front-mounted roller shutters at the touch of a button or control them via app while on the move? Electric front-mounted roller shutters from heroal offer you a wide range of control options - for greater comfort and increased security. For example, you can control your front-mounted roller shutters via a sun or temperature sensor for an optimum indoor climate. Timer control of the front-mounted roller shutters is also possible. Opening or closing the roller shutters via app or integrating them into your smart home system offers you the greatest possible flexibility and control - even when you're on the move. Do you still have to open and close your front-mounted roller shutters manually using a roller shutter strap? Retrofitting a roller shutter drive is also possible with heroal front-mounted roller shutters, provided a corresponding power connection is available. Use our specialist partner search to find a specialist partner in your area who can equip your front-mounted roller shutters with an electric drive.

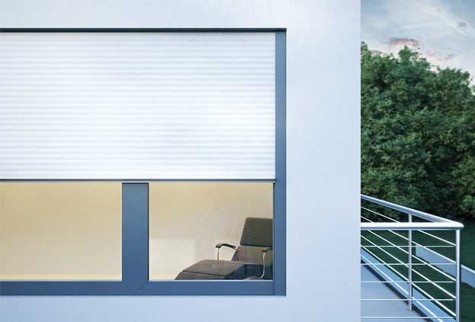

Would you like to retrofit a roller shutter but want it to remain as good as invisible? This is easily possible with a plastered front-mounted roller shutter, also known as a plasterable front-mounted box, with a flush-mounted cover box. The cover box blends seamlessly and virtually invisibly into the curtain wall. A wide range of colours are available for all heroal roller shutter profiles. A large selection of shapes and sizes is available for flush mounting cover boxes. If a flush mounting shutter box is used, the roller shutter is rolled up on the left and the convex side of the roller shutter faces outwards.
We will gladly send you the contact details of the matching heroal specialist in your area. To do this, we need your name, zip code, city and email address. We’ll also happily contact you by phone. In order to find the right specialist for your specific requirements, please specify which products you are interested in.
Successful together: the benefits of working together
Everything from a single source
heroal offers complete solutions for windows, doors, sun protection and more - perfectly coordinated and individually adaptable to your requirements in terms of security, comfort and energy-efficiency.
Individual design
Design your home according to your wishes: With over 500 RAL colour shades, exclusive shades from Les Couleurs® Le Corbusier®, surfaces in wood, concrete or rust look and 250 textiles for sun protection, you can enjoy maximum freedom in the best quality.
Service & specialist partners
Benefit from simple planning with our configurators, the inspiration finder and many references - and find the right expert to implement your project via our network of specialist partners.
Quality & responsibility
With heroal, you can rely on a family-run company with over 150 years of experience and 100% production in Germany. Our durable, sustainable systems and the highest quality workmanship ensure a high-quality, energy-efficient and sustainable home.
